Storage shelves and archiving systems
Space-saving and safe
We offer archiving boxes as well as a freely configurable storage system with zip pockets either made of PE material (transparent) or ESD material (black). We also have storage shelves for framed stencils.
The plastic holder included in the scope of delivery can be pushed through a small opening in the back of the box, so that the stencil can be stored safely and saving on space.
For shipping, the archiving box is fixed between two three-ply corrugated cardboard blanks. This ensures safe and secure transport of the stencils.
570 mm x 570 mm
720 mm x 570 mm

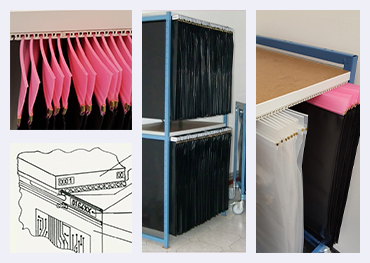

Storage system/zip pockets

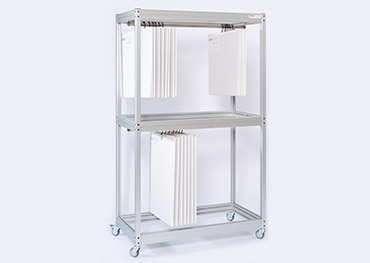

The storage system is available as a freely configurable shelf or as a cart with castors.
Basic shelf footprint:
1030 mm (W) x 600 mm (D).
Dimensions of mobile cart:
1060 mm (W) x 630 mm (D) x 1200 mm (H).
A shelf consists of a system plate, which is equipped with guide grooves and can accommodate 100 zip pockets.
The pockets are available in either PE or ESD material in many sizes.

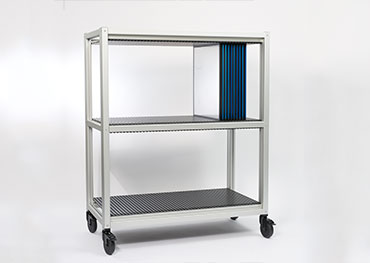

Shelves for framed stencils
Framed stencils can also be stored without an additional box or pockets.
Storage shelf footprint:
1200 mm (W) x 610 mm (D)
For each shelf, the storage shelf provides space for 93 VectorGuard stencils.
The system is suitable for BECsnap, BECdirect, BECdirectultra as well as VectorGuard VG260 and VG265 stencils, for example.
