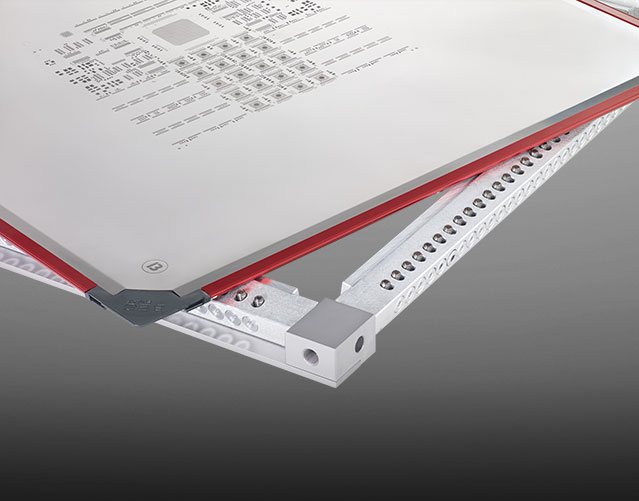

Quick tensioning systems
Quick, safe, stable and precise - By using SMT stencils type BECsnapVG or QF you ca make your everyday production more economical and safer.
The all-rounder
No compromises with BECdirectultra

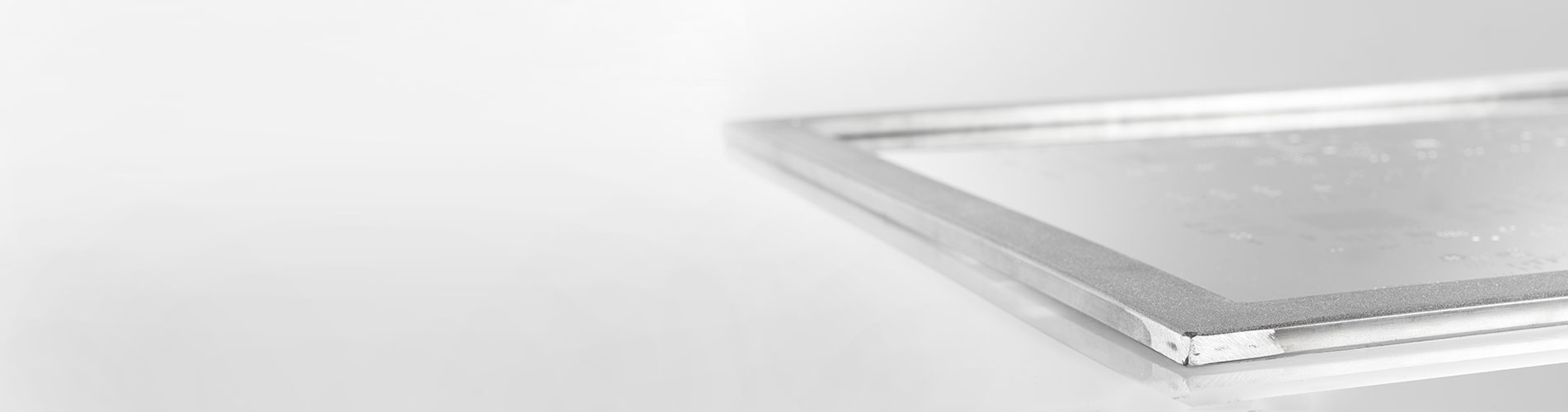

Enjoy full flexibility with the lightweight BECdirectultra. This precision stencil is directly attached to a stainless steel flat profile frame and thus combines the advantages of quick-tensioning and framed stencils in a single product. Suitable for all electronics production and printing processes.
Available in the following formats:
584 mm x 584 mm (23" x 23")
Maximum squeegee blade area: 524 mm x 524 mm
736 mm x 584 mm (29" x 23")
Maximum squeegee blade area: 676 mm x 524 mm
Downloads on the subject high precision stencil
BECdirectultra: stencil with the highest surface tension
Application Story: SYS TEC electronic GmbH (German)
Advantages of BECdirectultra:
- Maximum possible surface tension (> 50 N/cm²) for perfect printing results even with the finest structures
- Significantly lower profile height (10 mm) compared with classic frames
- Low stencil weight of approx. 2.2 kg (depending on the stencil material thickness)
- Repeated reusability of the flat profile frame
- Suitable for every printing process:
- SMD (Ultra Fine Pitch, Fine Pitch, Power Components)
- Adhesive printing
- LTCC applications
- Stepped stencils

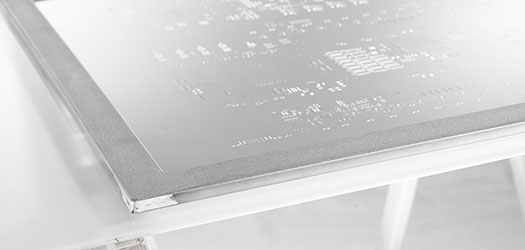

BECdirectultra for OEM
Why use new approaches? Because there is no reason not to and every reason to do so! BECdirectultra guarantees higher, more sustainable and process-optimised quality.
The significantly higher surface tension delivers better printing results. High durability, short set-up times and a long service life characterise the innovative product. The reduced overall weight and the space-saving flat profile make daily handling easier and noticeably faster.

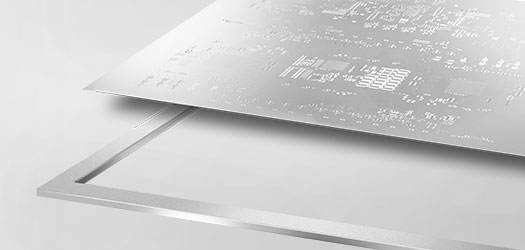

BECdirectultra for EMS
Never change a running system? BECdirectultra can be used in parallel with conventional fixed frames and existing tensioning systems.
The alternative system opens the market for higher quality prints and finer structures. Process errors are significantly reduced through simplified set-up and a simpler infrastructure.
