Precision stencils

Microscopically-precise LTCC stencils – BECmicro

Precise, efficient and qualitatively high performance

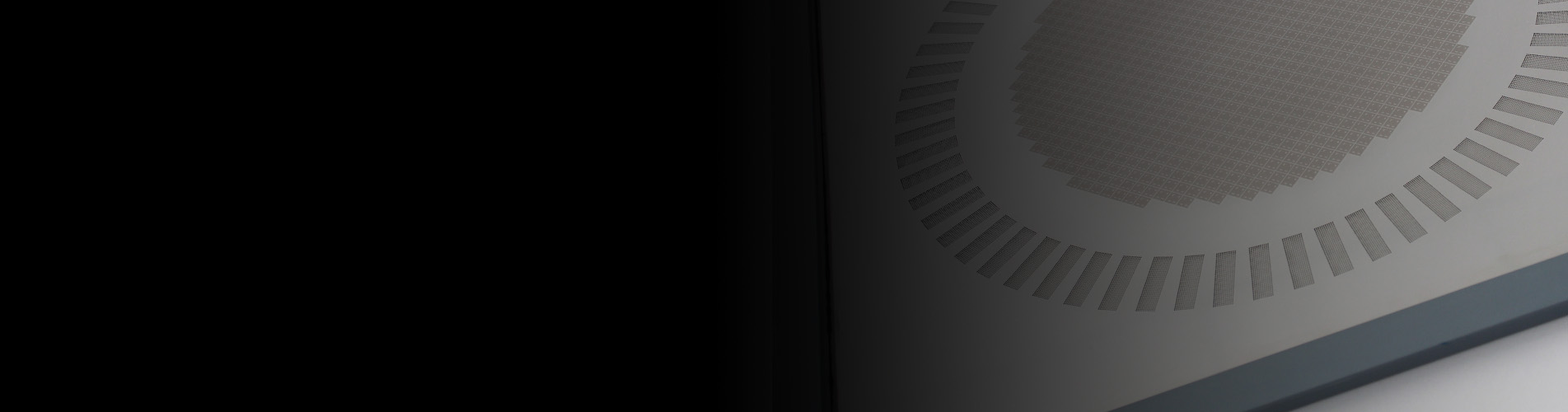

The areas of application range from the filling of MicroVias (LTCC techniques), to reference masks, the calibration of optical systems, and the imaging of the most delicate circuit structures. Regardless of stainless steel or nickel, the BECmicro places precise "pinholes" that are barely perceptible to the human eye. The size of a MicroPad of 25 µm in diameter is used as a reference with a plate thickness of 50 µm. The customised manufacturing of these precision stencils includes an additional three-stage quality control. This includes, among other things, ultrasonic cleaning as well as a check of the pad sizes and positioning accuracy.

Downloads on the subject of precisions stencils
BECmicro - precision stencils
